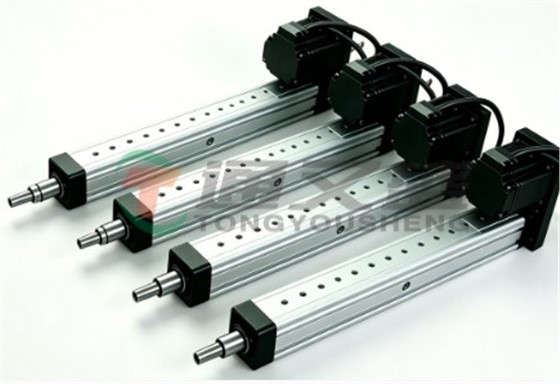

Incomplete Retraction of Piston Rod in High?Precision Electric Cylinders — Detailed Analysis of Typical Control?Related Issues
The high?precision electric cylinder has no mechanical jamming in hardware, yet offset stop positions occur due to abnormal commands, positioning and signals:
- Incorrect position parameter settings of high?precision electric cylinders: Improper configuration of retraction end coordinates and soft limits within the PLC or servo drive causes the electric cylinder to stop prematurely.
- Servo positioning deviation: Abnormal electronic gear ratio, home offset or homing mode results in inconsistent retraction stop positions with regular positional offset for each cycle.
- Signal and communication faults: False triggering of limit sensors, poor wiring contact, or lost bus/pulse signals make the system falsely judge that the end position has been reached.
- Acceleration?deceleration and overload protection: Excessive load or overly aggressive acceleration?deceleration parameters trigger servo overload protection and automatic shutdown, so the electric cylinder cannot reach its standard stroke position.
-
Step?by?step Troubleshooting Procedure for High?Precision Electric Cylinders (From Simple to Complex)
- Disconnect external loads and run the high?precision electric cylinder under no?load condition alone to observe whether the piston rod can retract completely.
- Inspect surrounding tooling, pipelines and mechanical stops, clear foreign debris, and calibrate installation coaxiality.
- Check data on the servo panel and PLC, and verify target positions, soft?limit values and homing parameters.
- Inspect sensor wiring and signal status, then perform home reset again.
- If the above checks fail to resolve the issue, disassemble the electric cylinder to inspect the internal lead screw, guide rails and lubrication condition.
Regular calibration of installation accuracy, dust removal and wiring inspection in daily operation can effectively prevent incomplete retraction failures. If the problem persists after repeated troubleshooting, please provide the electric cylinder model, control mode and fault phenomena for further analysis and resolution.
