Electric cylinder system features and installation style introductionAug 26, 2024

China has entered the era of Industry 4.0, the rise of domestic automation industry, all walks of life are constantly optimizing development. More and more users are using servo electric cylinders to replace traditional cylinders, in order to pursue more convenient, more efficient and more energy-saving industrial production goals.

However, for many users who have just come into contact with electric cylinders, there will be a little doubt. Today, we will take you to understand the characteristics of the electric cylinder system.

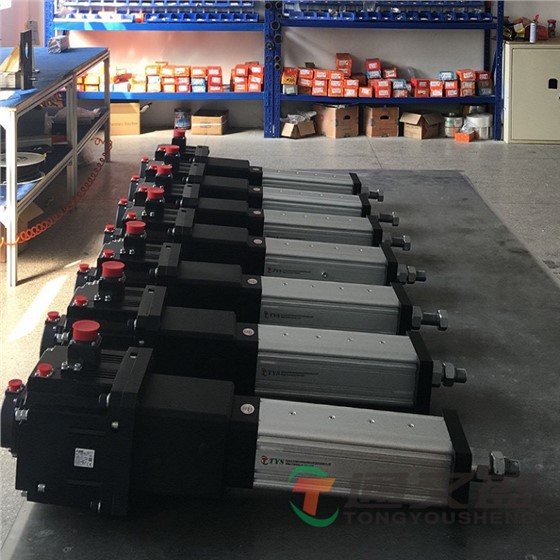

Simply put, the servo electric cylinder is a linear work product that integrates the lead screw and the servo motor, and can convert the screw rotation motion of the motor into linear motion. At present, the manufacturing technology of servo electric cylinder has been very mature, and it can be combined with various brands of servo motors, DC servo motors, and stepper servo motors to complete different parameter requirements.
The installation of the electric cylinder is very flexible, and the motor can choose two kinds of direct installation and folding installation. The installation of the electric cylinder joint has
External thread connection; Internal thread connection; Type I joint: allows the cylinder to swing in a plane; Y-joint: allows the cylinder to swing in a plane; Fisheye joint: with spherical bearing; Floating joint mounting: used to compensate for radial and angular deviations.
The fixing method of electric cylinder can choose different methods such as guide bracket installation, front flange installation, rear flange installation, side flange installation, trunnion installation, single end hinge installation, double end hinge installation. It is precisely because there are so many different installation methods to choose from that electric cylinder is suitable for a variety of different occasions.


Suzhou Tongyousheng is a high-tech innovative enterprise specializing in research and development, design, manufacture and sales of high-precision electric cylinder, linear slide, servo press, multi-freedom platform, multi-axis auxiliary platform servo control system.If you are interested in our products or have questions,please contact us.
