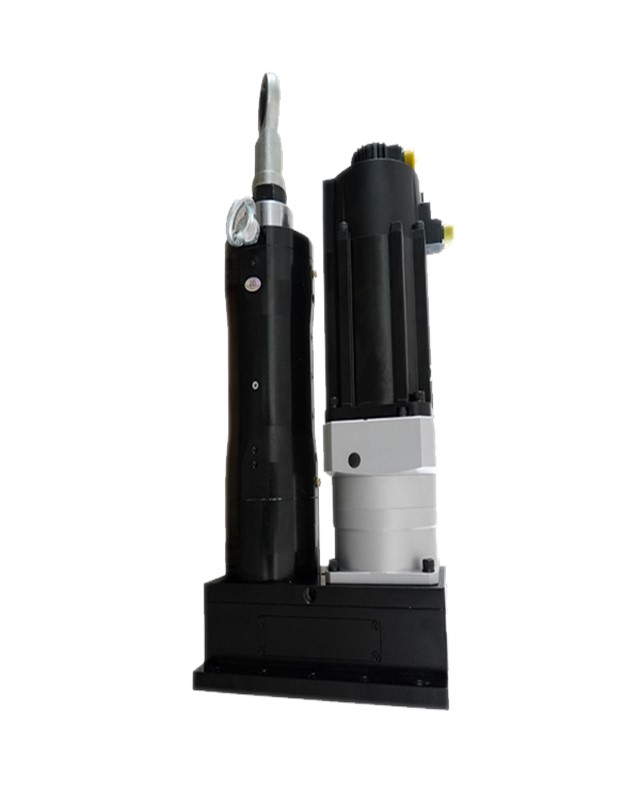

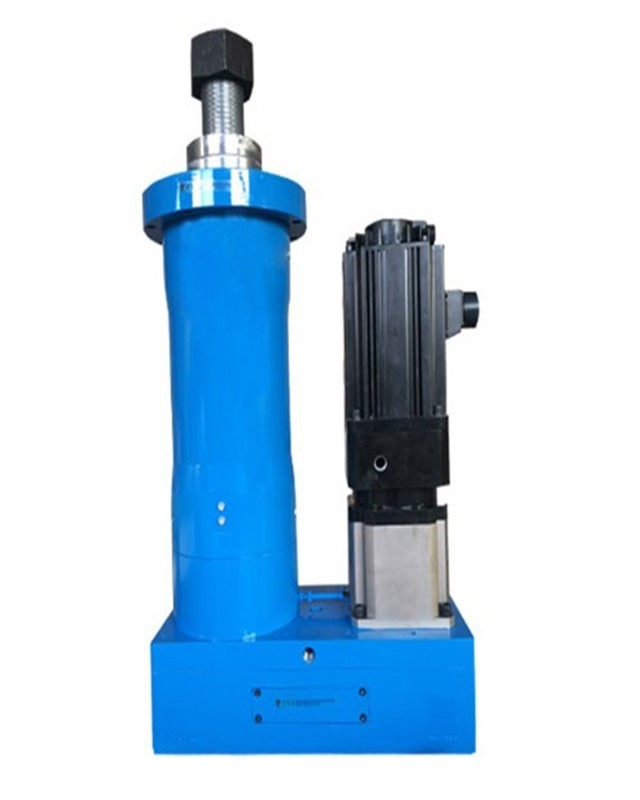

TYSC220 electric cylinderTYSC220 electric cylinder

TYSC220 electric cylinder

Model: TYSC220
Motor installation mode; Directly connected type
Screw diameter: 80mm
Lead of lead screw: 20mm
Effective stroke: 0-3000mm
Rated output: 200KN
Motor power: 3KW/4KW/1KW/2KW
Rated speed: 250mm/s
Repeated positioning accuracy: ±0.02mm
Protection class: IP65

Product characteristics

Characteristics of servo electric cylinder:Energy saving and environmental protection, low noise, high speed, high precision, fast response, long life, can work in the harsh environment without trouble for a long time stable. Therefore, it can be used in the field of mechanical automation, automotive industry, chemical industry, military manufacturing, large-scale special scene simulation and other fields and industries.

In terms of performance, the electric cylinder is more stable. It operates at an increased speed and power range, and can provide greater position accuracy. One of the drawbacks of the hydraulic system is that the viscosity of the hydraulic oil can change with time and temperature, affecting the performance of the machine. Electric cylinders, on the other hand, can always maintain precise tolerances over long periods of operation, and because their moving parts are based on recognized rolling element bearing technology, their service life can be predicted under a given set of operating conditions.

The electric cylinder mainly saves costs from six aspects: improving energy efficiency, reducing heat loss, improving production speed, improving material utilization, extending uptime, and simplifying maintenance processes.

Product parameter

Model number TYSC220
Motor mounting mode direct connection backtrack
screw diameter 80mm
screw lead 20
screw stroke 0-3000
Rated (KiloNewton) 200
Reduction ratio 1:4/1:5/1:10/1:20/1:50
Motor power 3/ 4/5.5/ 7.5/11
Rated speed 250
Anti-rotation Yes/no
Limit switch Yes/no
Repeatability ±0.02
Electric cylinder installation mode Bottom threaded hole
Baseplate
Front-flange
Tailflange
Tail pin
Tail pin hole
custom
Load connection mode External thread
internal thread
Rod end joint bearing
Double bolt hole at rod end
custom
Protection class IP65

Loading connection

Model Defintion
