Application of Electric Cylinder in Racing Simulation Platforms

return Source:TongYouSheng
Application of Electric Cylinder in Racing Simulation Platforms
Glance over:- Release date:May 10, 2024【Big In Small

The electric cylinder is an electric actuator that rotates the screw by electric drive and converts it into reciprocating linear motion. Electric cylinders are widely used in the entertainment industry, military industry, automotive industry, industrial manufacturing industry, medical equipment industry, etc., and are the best substitute for traditional cylinders and hydraulic cylinders.

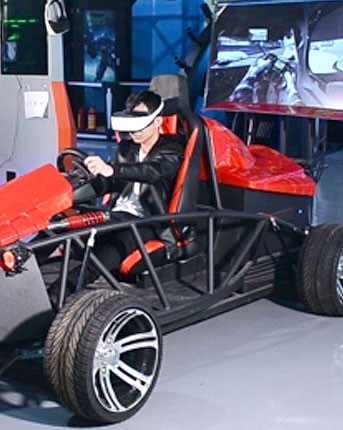

I believe that many people have experienced 4D, 5D dynamic theater, racing simulator and other entertainment experience projects, and these can use electric cylinders to build a variety of platforms to achieve.

electric cylinder

These simulators are generally composed of main structure, computer simulation system, operating peripherals, display system, dynamic system, etc.

Through the joint construction of 2, 3, 4 and 6 electric cylinders, the platform of two degrees of freedom, three degrees of freedom, six degrees of freedom is completed to simulate various movements. Each degree of freedom change is to be completed by the electric cylinder to make changes at the same time.

The control software decomposes the whole motion data into the independent action of each motor through the inverse solution algorithm, which is a very complicated process. The precise control performance of the electric cylinder also meets the design requirements.

This dynamic simulator product uses a short electric cylinder stroke, but has a high vibration frequency and response speed, can easily simulate the soft and hard different road surface, water, pressure over the shoulder and other delicate dynamic feeling, the reaction is almost no delay, in the game-level simulation experience has been very shocking.

Our common movie dynamic sofa, theater dynamic seats, simulation racing games, earthquake hut experience are all built with electric cylinders.
