What is a reversible electric cylinder, do you know?

return Source:TongYouSheng
What is a reversible electric cylinder, do you know?
Glance over:- Release date:Aug 23, 2024【Big In Small

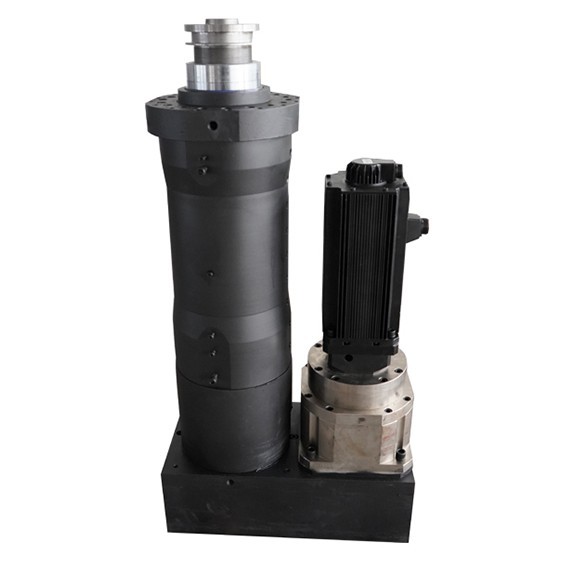

The returnable electric cylinder means that the electric cylinder  and the motor are installed in parallel, the motor is installed next to the cylinder, and the transmission screw of the electric cylinder is connected through the synchronization belt and the synchronization wheel. Motor drive, synchronous belt synchronous wheel drive screw to work back and forth.

The characteristics of the fold-back electric cylinder are similar to those of the direct-connected electric cylinder, and the overall length of the fold-back electric cylinder is shorter than that of the direct-connected electric cylinder. Therefore, the folding electric cylinder is more suitable for installation in the installation position is relatively small.
The synchronous belt selected by the folding electric cylinder has the characteristics of high strength, small gap and long life. The whole electric cylinder has high control and control accuracy.
At the same time, we also need to know that it is precisely because the electric cylinder is connected by the synchronization belt and the synchronization wheel, and there is an intermediate link, so the control accuracy of the electric cylinder is not as high as the control accuracy of the direct electric cylinder. Therefore, in many occasions with strict requirements for accuracy, it is more suitable for direct connected electric cylinders.
The reversible electric cylinder has a strong ability to adapt to the environment. The returnable servo electric cylinder is not easily affected by the ambient temperature, and can work normally without fault in low, high temperature, rain and snow and other harsh environments.
When working, the reversible electric cylinder can achieve the advantages of high precision, high-speed response, energy saving and environmental protection, which is the only choice in the hearts of users.


Suzhou Tongyousheng is a high-tech innovative enterprise specializing in research and development, design, manufacture and sales of high-precision electric cylinder, linear slide, servo press, multi-freedom platform, multi-axis auxiliary platform servo control system.If you are interested in our products or have questions,please contact us.
