The working principle of electric cylinder is explained in detail
Glance over:- Release date:Aug 23, 2024【Big In Small

Nowadays, with the vigorous development of productivity, enterprises are increasingly pursuing to improve efficiency, reduce costs and increase revenue. In production, electric cylinders can replace labor, excellent performance, flexible application, occupy a relatively large competitiveness

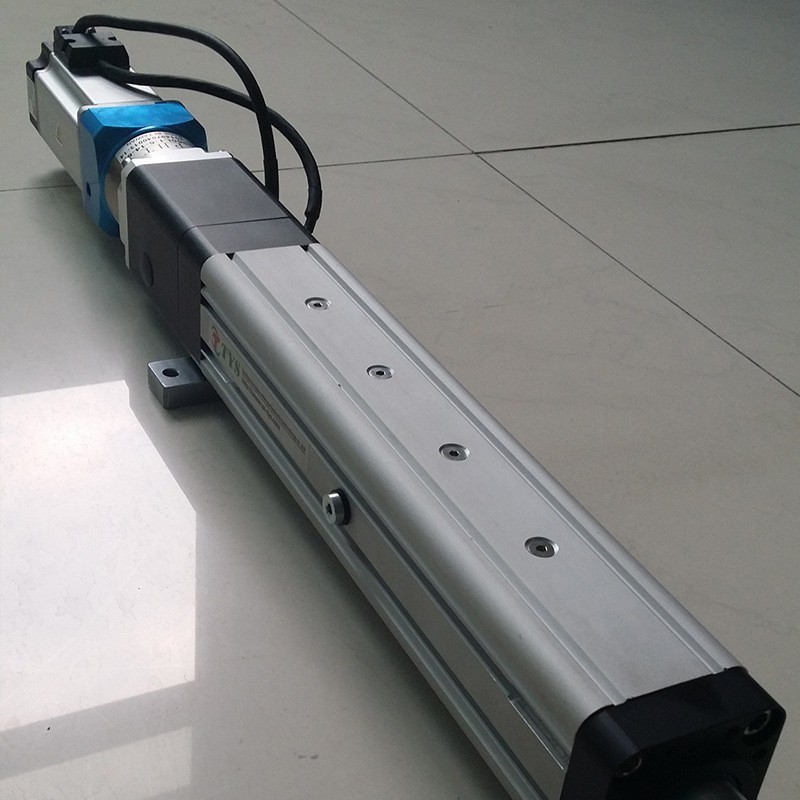

The electric cylinder is mainly composed of servo motor, electric cylinder block, transmission device and position feedback device. Drive motor can choose DC motor, AC motor, stepper motor, servo motor, etc. Reduction devices are generally gear reduction, worm gear, planetary gear, harmonic reduction and so on.
Therefore, the configuration of the electric cylinder is flexible, the choice is diverse, for different links, different production needs, there are corresponding models of products, and they can better meet the needs of users.
When the electric cylinder is working, it sends instructions to the servo driver through the computer, the servo driver drives the servo motor according to the instructions, and drives the ball screw pair to rotate through the reducer and reversing gear transmission mechanism. The radial limit of the screw nut is driven by the rotating torque of the screw and the push rod do reciprocating linear motion together. A multi-circle absolute encoder is installed on the end of the screw rod as a position feedback device for real-time feedback of the position of the push rod.
The electric cylinder has manual function, emergency device, locking function, limit limit and alarm function. Therefore, in practical applications, electric cylinders can bring users enough safety and more in line with the requirements of production applications.


Suzhou Tongyousheng is a high-tech innovative enterprise specializing in research and development, design, manufacture and sales of high-precision electric cylinder, linear slide, servo press, multi-freedom platform, multi-axis auxiliary platform servo control system.If you are interested in our products or have questions,please contact us.
