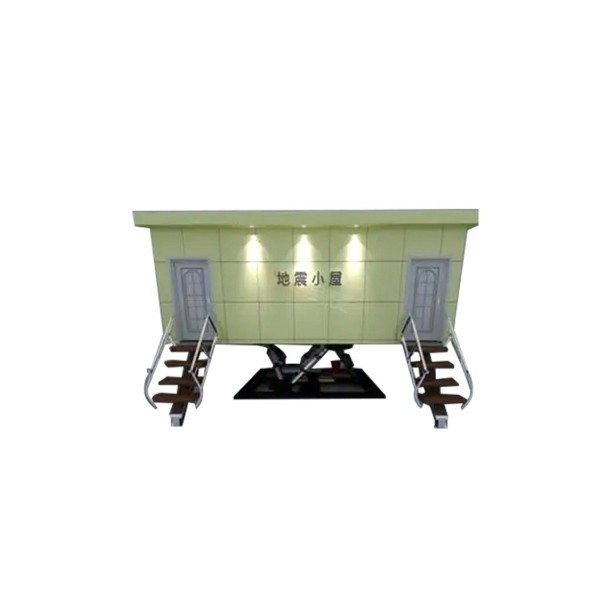

Earthquake hut Earthquake simulation platform

The six-degree of freedom earthquake experience platform adopts the most advanced six-axis motion control system, which is suitable for earthquake science popularization venues, science and technology museums, and amusement venues. It can most truly experience the feeling of earthquake for the audience, highlighting the violent shaking of the ground during the earthquake, the wave of P-wave and S-wave, and the organic coordination of visual, audio and special effects, so that people can be immersive. Further understanding of earthquake related knowledge, to achieve a certain effect of popular science, improve people's awareness of earthquake prevention and disaster reduction

Product details

Product characteristics

01.Deep customizationSupport three/six degrees of freedom and other platforms non-standard customization, in-depth customization according to customer needs, to meet the site conditions, content scenes, appearance modeling and other application scenarios.

02.Product modularization The full set of products adopts modular design and core hardware is independently designed and manufactured, which simplifies the composition of key components, simplifies the replacement of main components, and reduces the time delay and loss caused by equipment failure problems as much as possible.

03.Design reliability In the face of high-precision and heavy-duty scenarios, we have rich design experience, and carry out complete reliability analysis through PRO/E, MATLAB simulation software and mechanical analysis, and carry out professional and reliable design on mechanical structure to ensure the accuracy and safety requirements of products.

04.Easy to operate Software docking is easy to use, action acquisition software supports linear compilation to ensure smooth action and provides a variety of communication methods of secondary development interface, support UDP, TCP/IP, string mouth Wifi and other communication methods.

05.Continuously freshen up The company continuously tests and improves the core algorithm, and continuously optimizes the upper computer software. To meet the customer network download and client update, so that customers can enjoy the company's latest development software for a long time.

Product introduction

Software

Fast - Using EtherCAT bus communication mode, fast response rate, large amount of data transmission, to ensure stability and low latency.

Precision - The use of domestic leading parallel algorithm, and accurate modeling, with the underlying data of high liquidity, to fully ensure the precise and efficient control.

Stability - The platform software has been repeatedly tested to ensure stability, reliability and continuous use.

Motors and drivers

Brand - Support the control selection of commonly used motor brands in the market, such as ABB, Panasonic, Yaskawa, Delta, Dongling, etc.

Rotational speed - as a platform source power, directly affects the rate of change of the platform's angular displacement.

Electric cylinder

Lead - The same conditions directly affect the Angle of the platform, the rate of change of displacement. The bigger the lead, the faster the speed

Stroke - the range of changes affecting the angular displacement of the platform under the same conditions. The larger the stroke, the larger the platform volume and the larger the range of pose change.

Strength - According to the size of the platform, dynamic load and static load, the appropriate cylinder diameter of the electric cylinder power is selected after detailed strength check, which directly affects the change rate of the platform's angular displacement.
